NDA · 01Weighing & instrumentation
Legacy weighing-scale retrofit
A Wi-Fi control board that brings connectivity to existing weighing scales — no new instrument needed.
Proof · What we've shipped
We earn trust by shipping, not promising.
Four ESP32 boards across three families — designed, built and shipping from Incrix Automation. From a first dev board to a 30 × 25 mm Industry-4.0 hub.
01 · Horizon · ESP32-S3Horizon Gen 1ESP32-S3 entry dev board
02 · Twinedge · ESP32-S3Twinedge Dev V2ESP32-S3 · 4 integrated relays
03 · Horizon · ESP32-C6Horizon Dev-2 C6Thread · Matter · Zigbee · Wi-Fi 6
04 · Hexon · ESP32-C6Hexon Atom C630×25 mm Industry-4.0 hub
Horizon
Development boards — the starting point for learning, prototyping and multi-protocol smart devices.
Twinedge
Controllers with relays on board, built to switch real loads in the field.
Hexon
Compact modules made to embed inside machines, panels and products.
ShippingBoard 01· Horizon family

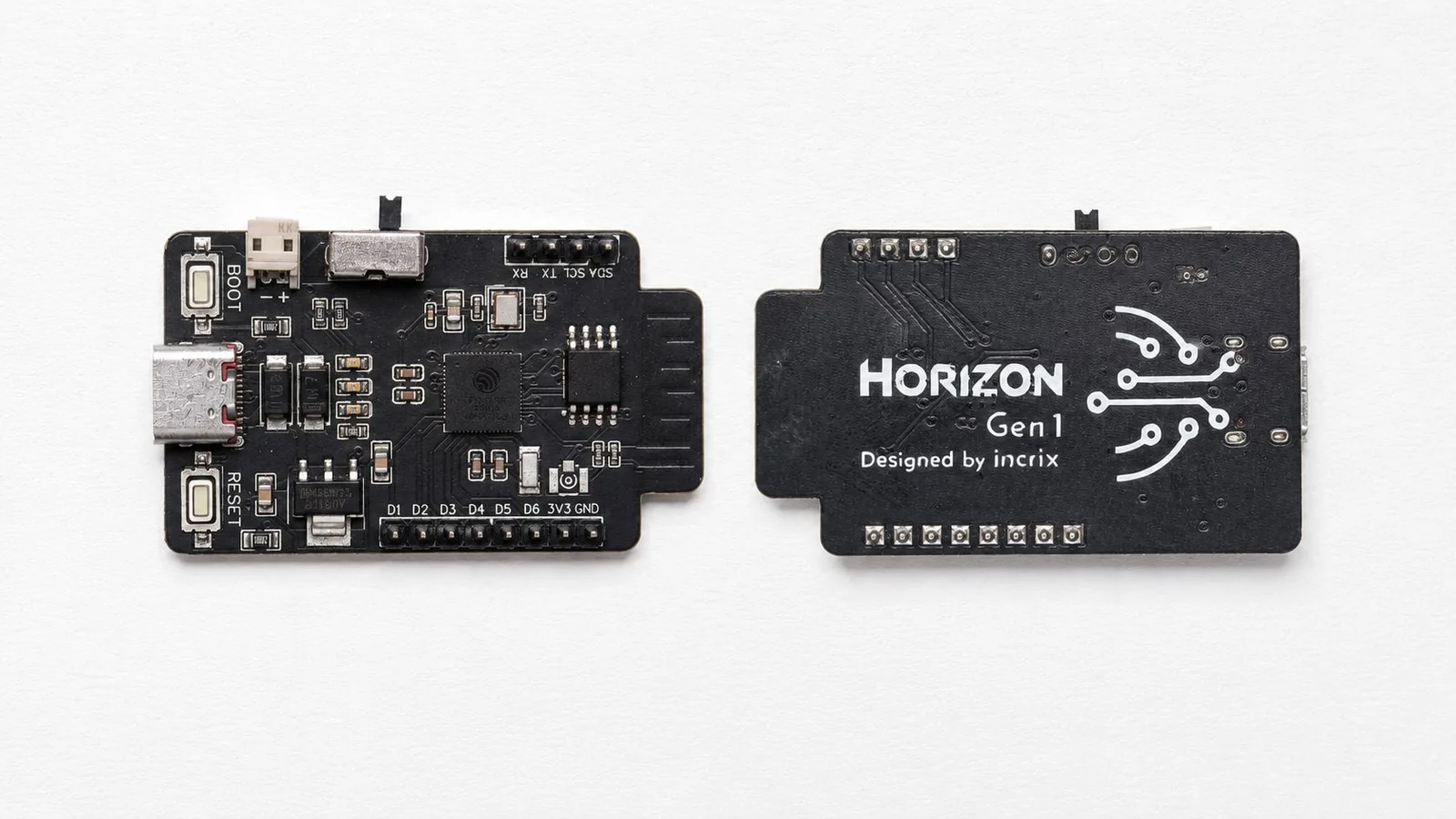

Horizon Gen 1
ESP32-S3 entry dev board
Our entry development board — an ESP32-S3 platform in a matte-black finish, built as the starting point for makers, students and product teams prototyping connected devices.
- Chip
- ESP32-S3
- Wireless
- Wi-Fi · Bluetooth LE
- Family
- Horizon
- Status
- Shipping
Highlights
- USB-C for power and programming
- Boot and reset buttons
- Broken-out GPIO header
- Designed in-house by Incrix
Good for
ShippingBoard 02· Twinedge family

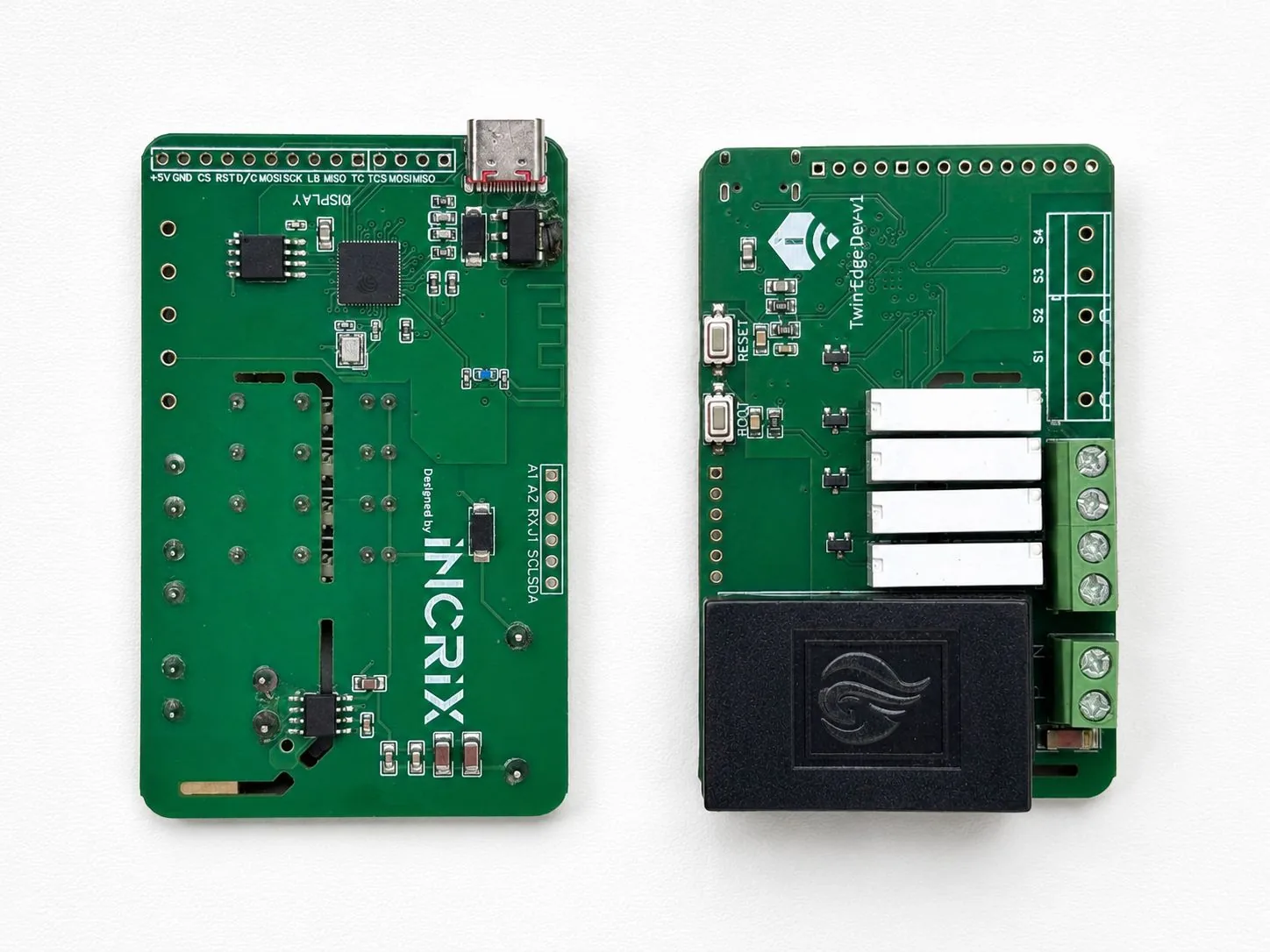

Twinedge Dev V2
ESP32-S3 · 4 integrated relays
An ESP32-S3 controller with four relays on board — built to switch real loads, so automation projects go from bench to installation without a separate relay module.
- Chip
- ESP32-S3
- Wireless
- Wi-Fi · Bluetooth LE
- Family
- Twinedge
- Status
- Shipping
Highlights
- 4 integrated relays
- On-board mains power supply
- Screw terminals for field wiring
- Successor to Twin Edge Dev v1
Good for
ShippingBoard 03· Horizon family

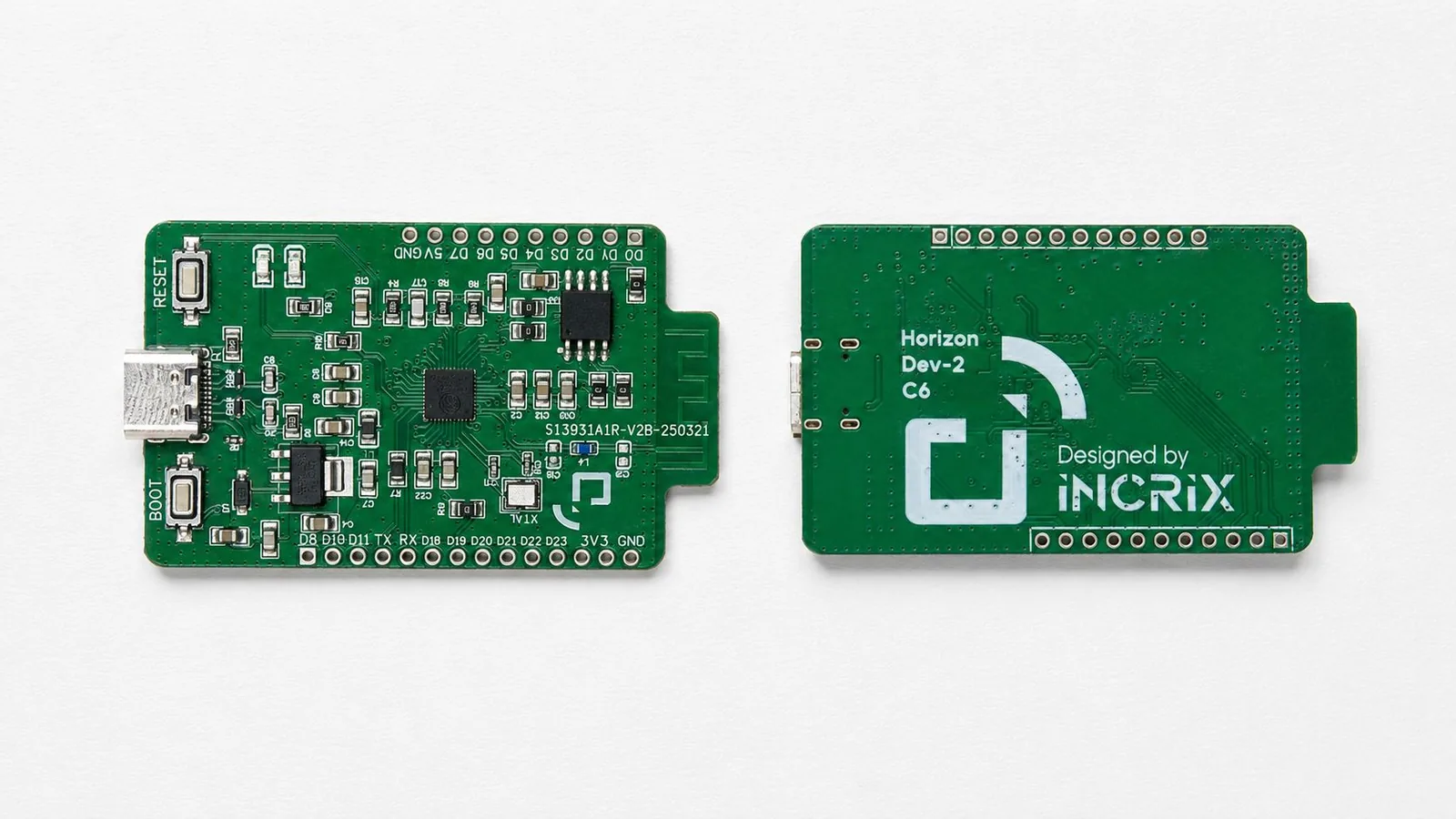

Horizon Dev-2 C6
Thread · Matter · Zigbee · Wi-Fi 6
The multi-protocol member of the Horizon family — Wi-Fi 6 plus Thread, Matter and Zigbee on one board, for the next generation of interoperable smart devices.
- Chip
- ESP32-C6
- Wireless
- Wi-Fi 6 · Thread · Matter · Zigbee · Bluetooth LE
- Family
- Horizon
- Status
- Shipping
Highlights
- Wi-Fi 6
- Thread & Zigbee (802.15.4)
- Matter-ready
- USB-C
Good for
ShippingBoard 04· Hexon family

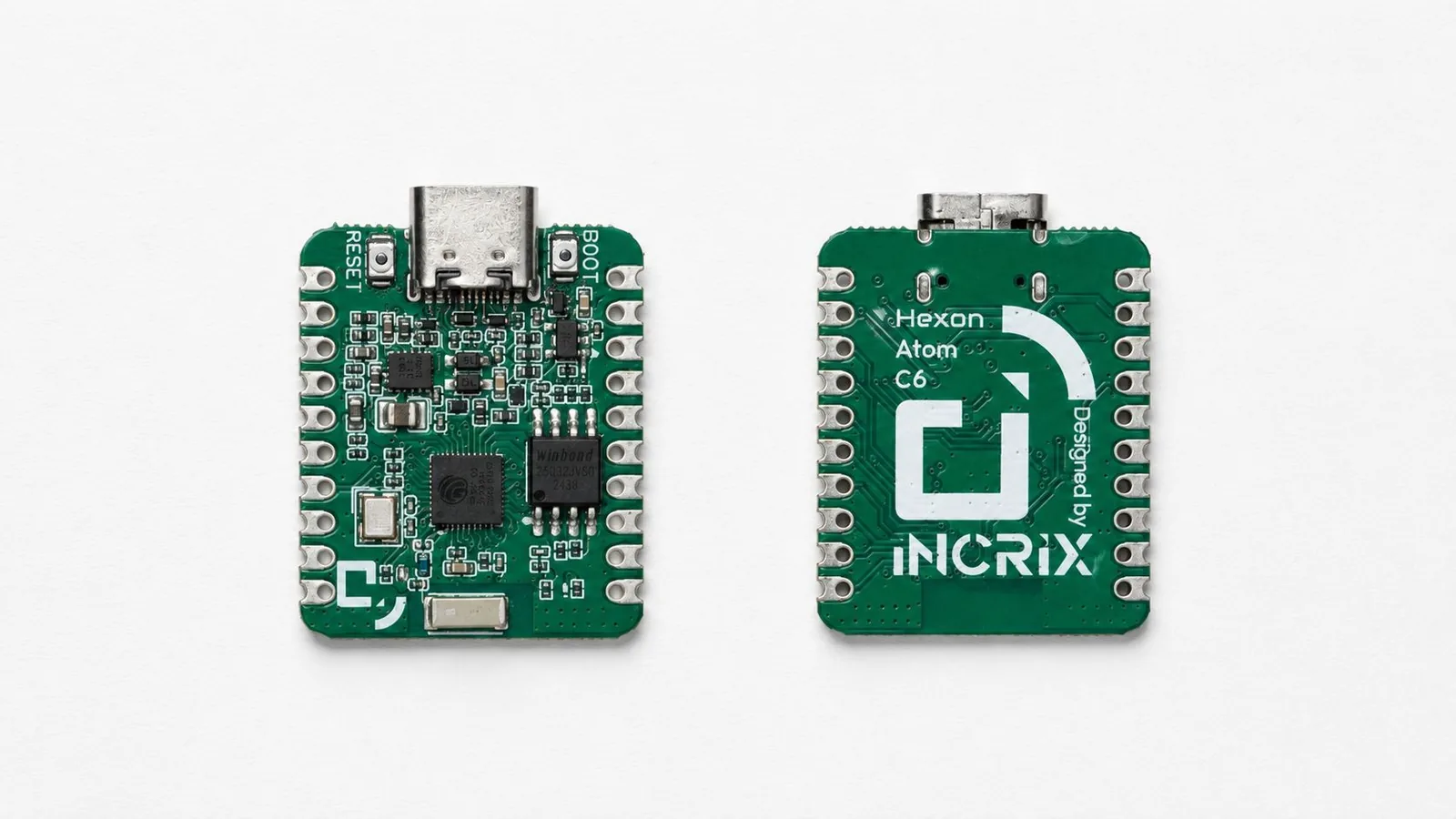

Hexon Atom C6
30×25 mm Industry-4.0 hub
A 30×25 mm module that packs an Industry-4.0 hub into a footprint small enough to drop into machines, panels and enclosures.
- Chip
- ESP32-C6
- Wireless
- Wi-Fi 6 · Thread · Zigbee · Bluetooth LE
- Family
- Hexon
- Status
- Shipping
Highlights
- 30 × 25 mm footprint
- Castellated edge pins
- USB-C
- Built for embedding
Good for
Compare· All four boards
Side by side.
Same engineering core, four different jobs. Pick by chip, radio and where the board has to live.
| Board | Chip | Wireless | Form & footprint | Best for |
|---|---|---|---|---|
| Horizon Gen 1Horizon | ESP32-S3 | Wi-Fi · Bluetooth LE | Dev board · broken-out GPIO header | Learning & prototyping, Connected sensors, Proof-of-concept builds |
| Twinedge Dev V2Twinedge | ESP32-S3 | Wi-Fi · Bluetooth LE | Controller · 4 relays, on-board supply, screw terminals | Home & building automation, Appliance and motor control, Retrofits |
| Horizon Dev-2 C6Horizon | ESP32-C6 | Wi-Fi 6 · Thread · Matter · Zigbee · Bluetooth LE | Dev board · USB-C | Matter smart-home devices, Mesh sensor networks, Gateways |
| Hexon Atom C6Hexon | ESP32-C6 | Wi-Fi 6 · Thread · Zigbee · Bluetooth LE | Module · 30 × 25 mm, castellated edge pins | Industry 4.0 retrofits, Machine monitoring, Compact products |
Where it started· Twin Edge Dev v1
Our first in-house ESP32-S3 board.
Twin Edge Dev v1 is where our board line began — the predecessor of today's Twinedge Dev V2. Drag the model to turn it over.
Twin Edge Dev v1 · predecessorSee its successor, Twinedge Dev V2
Delivered under NDA· Client work
Boards we can't name — but did ship.
Alongside our own lineup, we design custom electronics for clients. Two recent examples, shared without identifying details.
NDA · 02Healthcare IoT
Point-of-care height measurement
A Wi-Fi height-measurement device built for point-of-care use.
Full stackBoard design → multi-layer PCB → firmware → edge-AI → cloud dashboard.
One coreEvery product reuses one engineering core — real-time control, ESP32 connectivity and a connected-fleet cloud.
Build on our boards
Need a custom board?
Start from one of our boards or from a blank sheet. We take it through schematic, multi-layer PCB, firmware, prototype and production.
Explore design servicesFAQ
Board questions.
Can't find what you need? Ask us directly.
01Which Incrix board should I choose?
Start with Horizon Gen 1 for learning and prototyping on ESP32-S3. Choose Twinedge Dev V2 when you need to switch lights, motors or appliances — its four relays are on the board. Pick Horizon Dev-2 C6 for Matter, Thread or Zigbee smart-home devices, and Hexon Atom C6 when you need a compact module to embed in a machine or product. If you're unsure, tell us about the project and we'll recommend one.
02Can the boards be customised for my product?
Yes. Every board is designed in-house, so we can adapt a design — or build a new one on the same engineering core — through our design services, from schematic and multi-layer PCB to firmware and production.
03Are the boards suitable for education and student projects?
Horizon Gen 1 was built as a starting point for makers and students, and our education kits share the same engineering core. Schools and colleges can also talk to us about lab setups.
04Do the ESP32-C6 boards support Matter and Thread?
Horizon Dev-2 C6 supports Wi-Fi 6, Thread, Zigbee and Bluetooth LE and is Matter-ready. Hexon Atom C6 supports Wi-Fi 6, Thread, Zigbee and Bluetooth LE in a 30 × 25 mm module.
05How do I buy a board or check availability?
All four boards are shipping. For quantities, lead times and pricing, contact us and we'll get back to you with the details for your order.
